5.0mm Depth Stop Drill Set

Advantages, Protocol, and Maintenance: Depth Stop Drill Manual

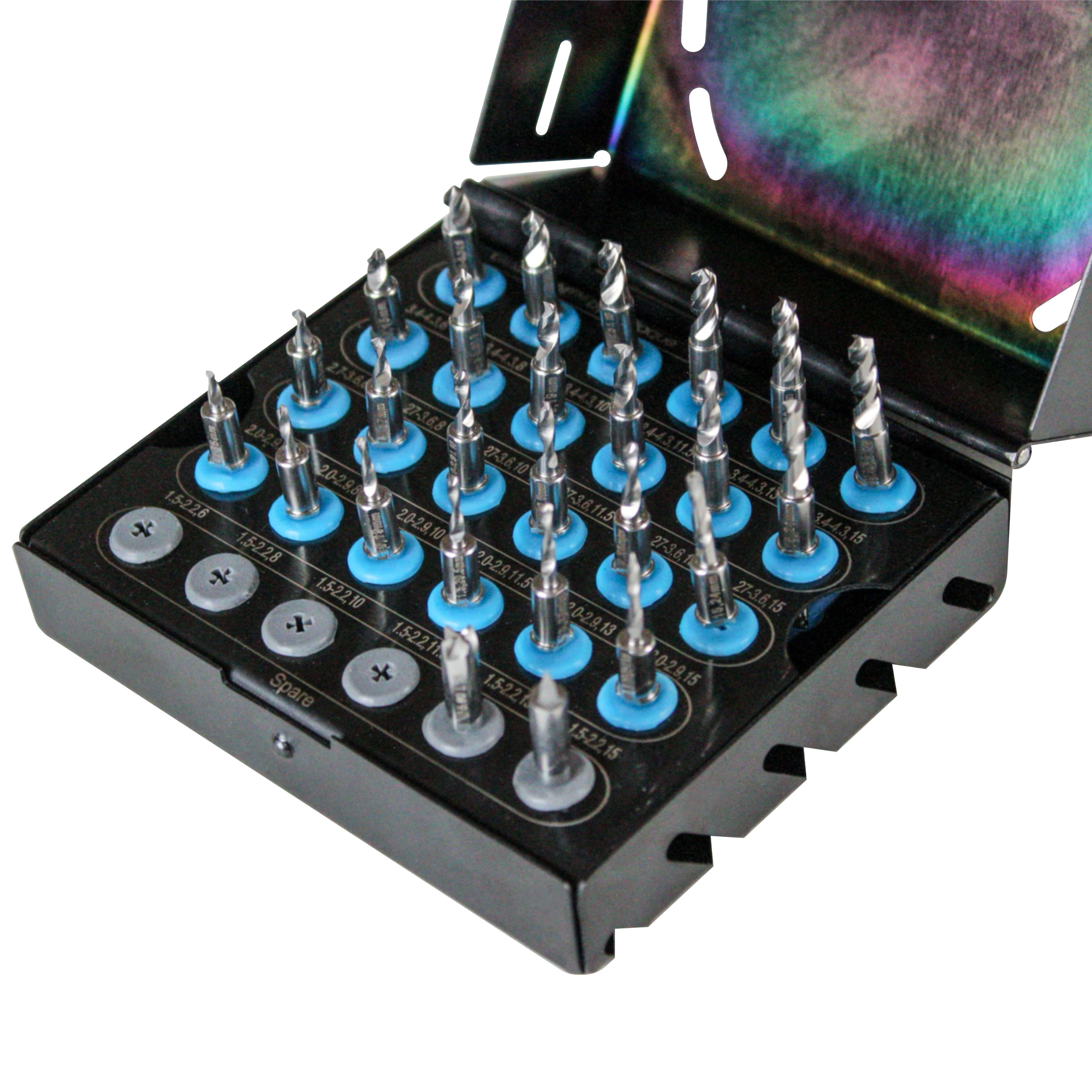

5.0mm Depth Stop Drill Set includes:

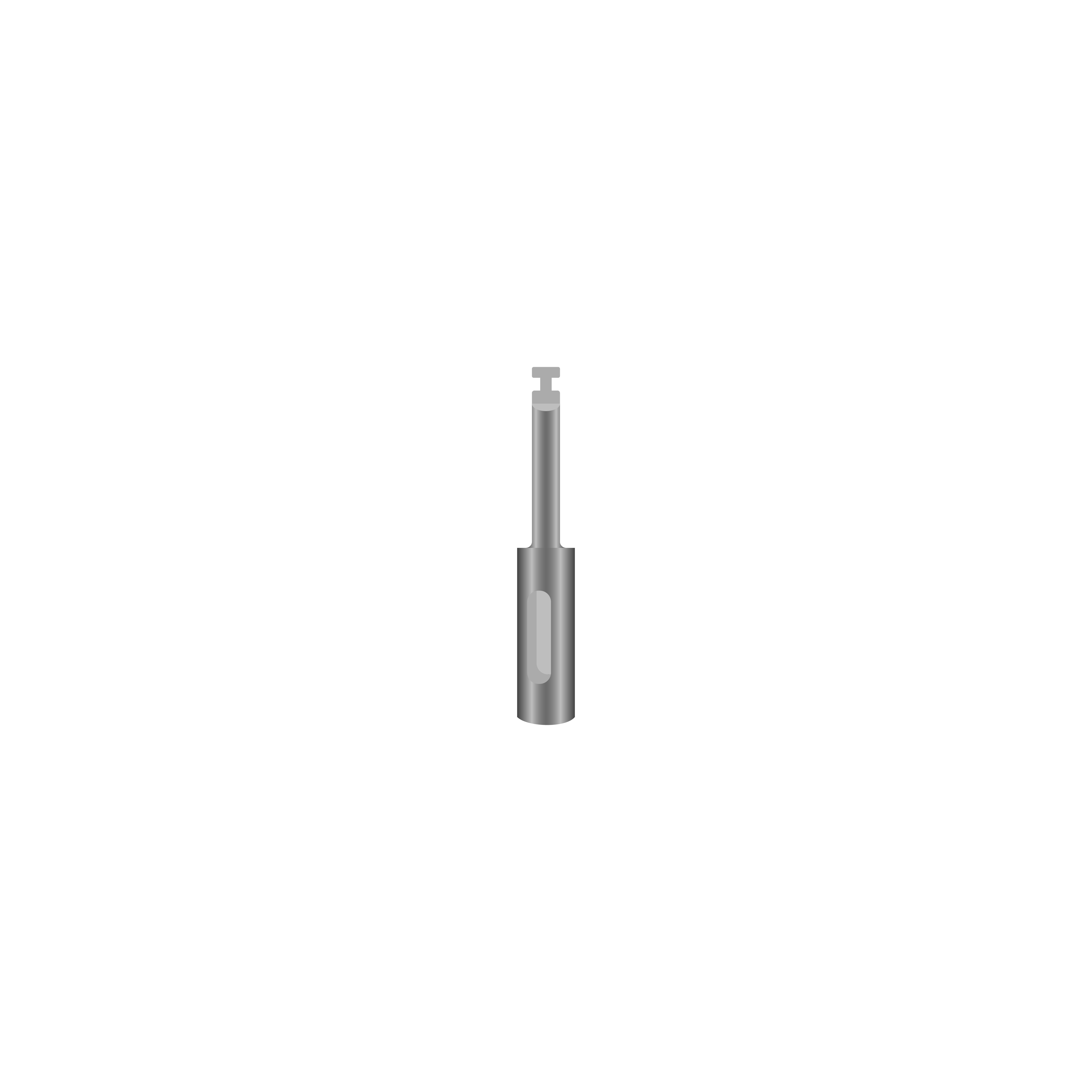

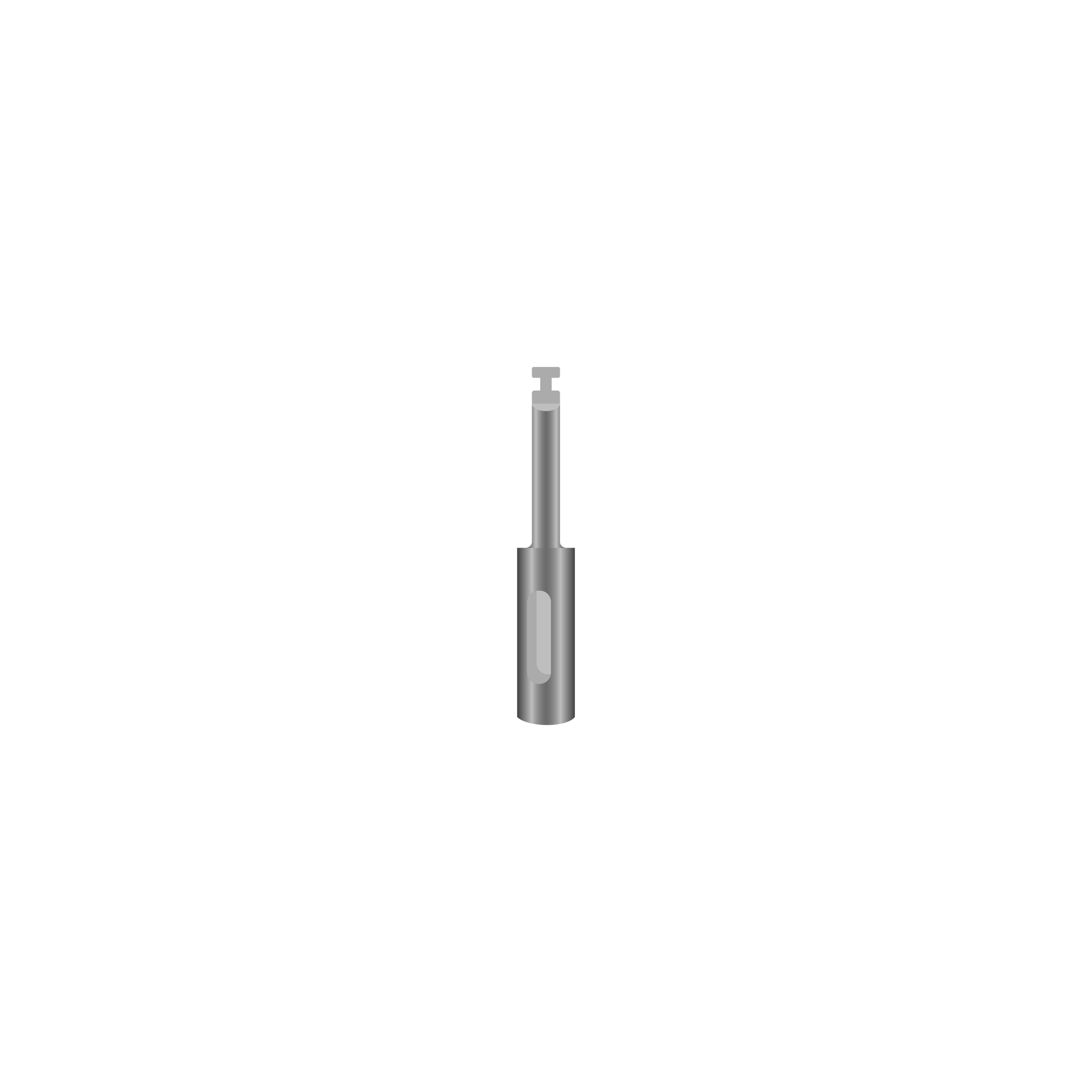

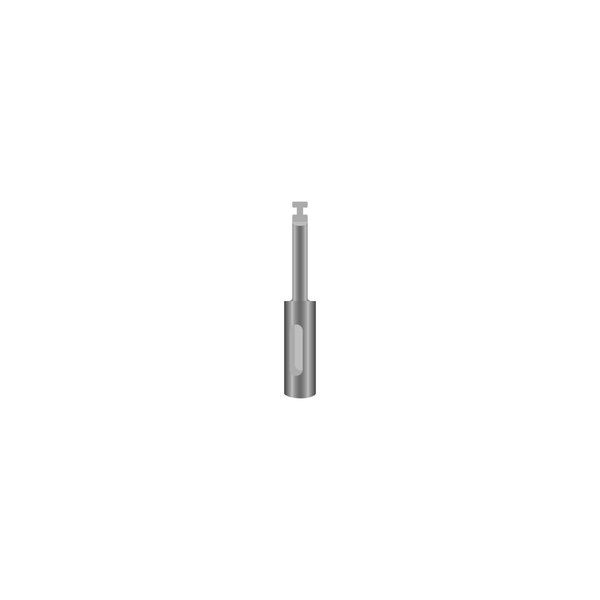

• 5.0mm Circular Marking - Punch Drill

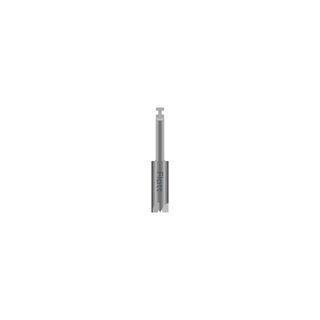

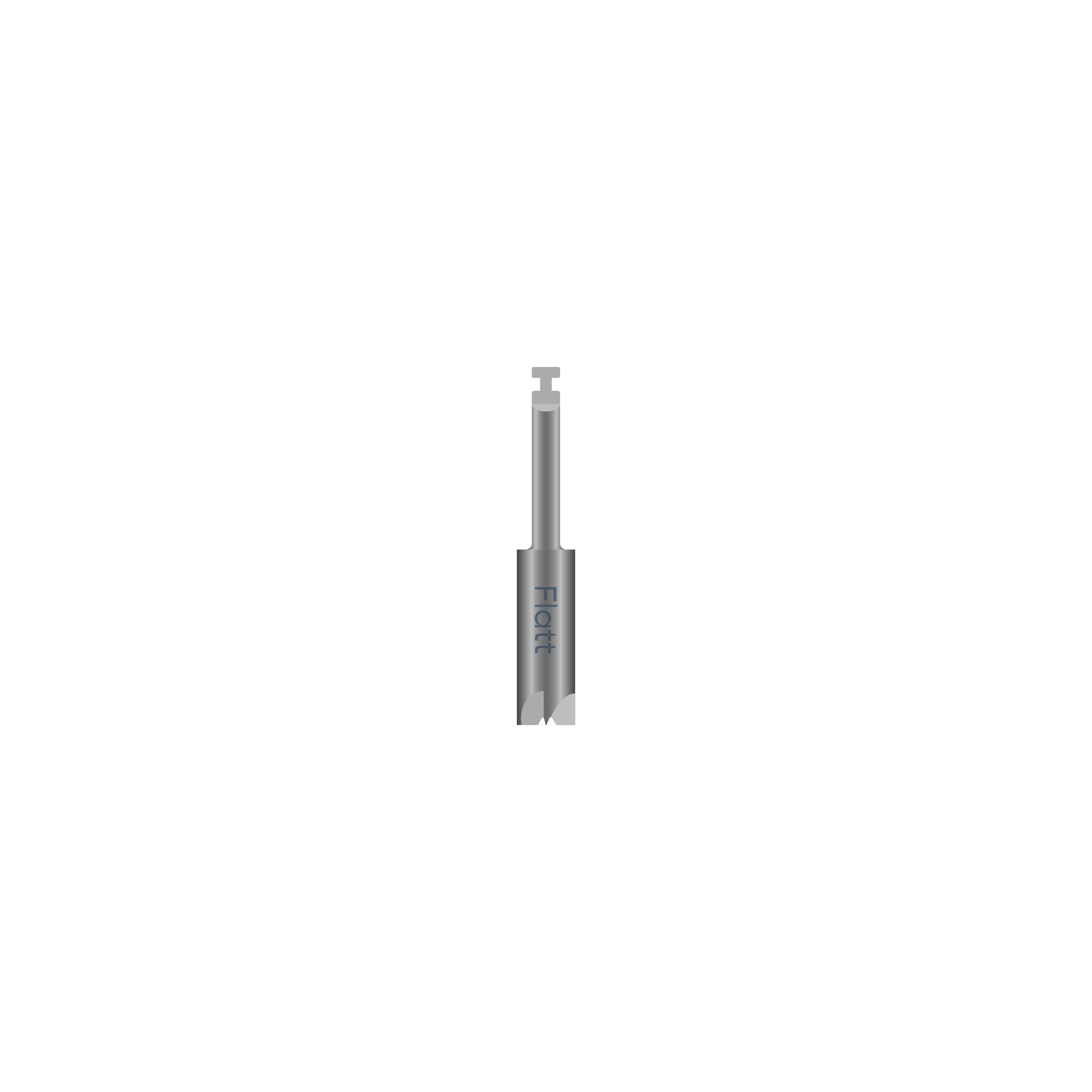

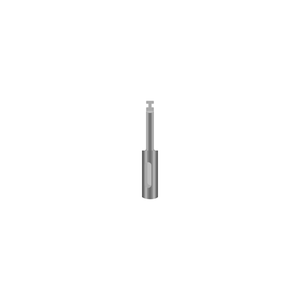

• 5.0mm Flattening Drill

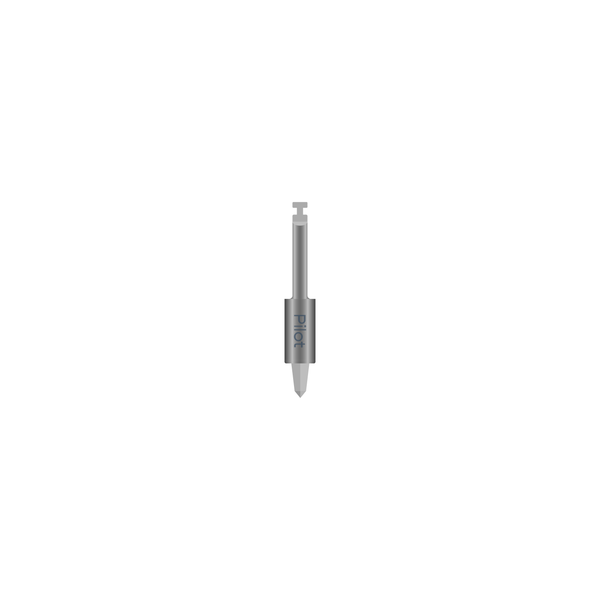

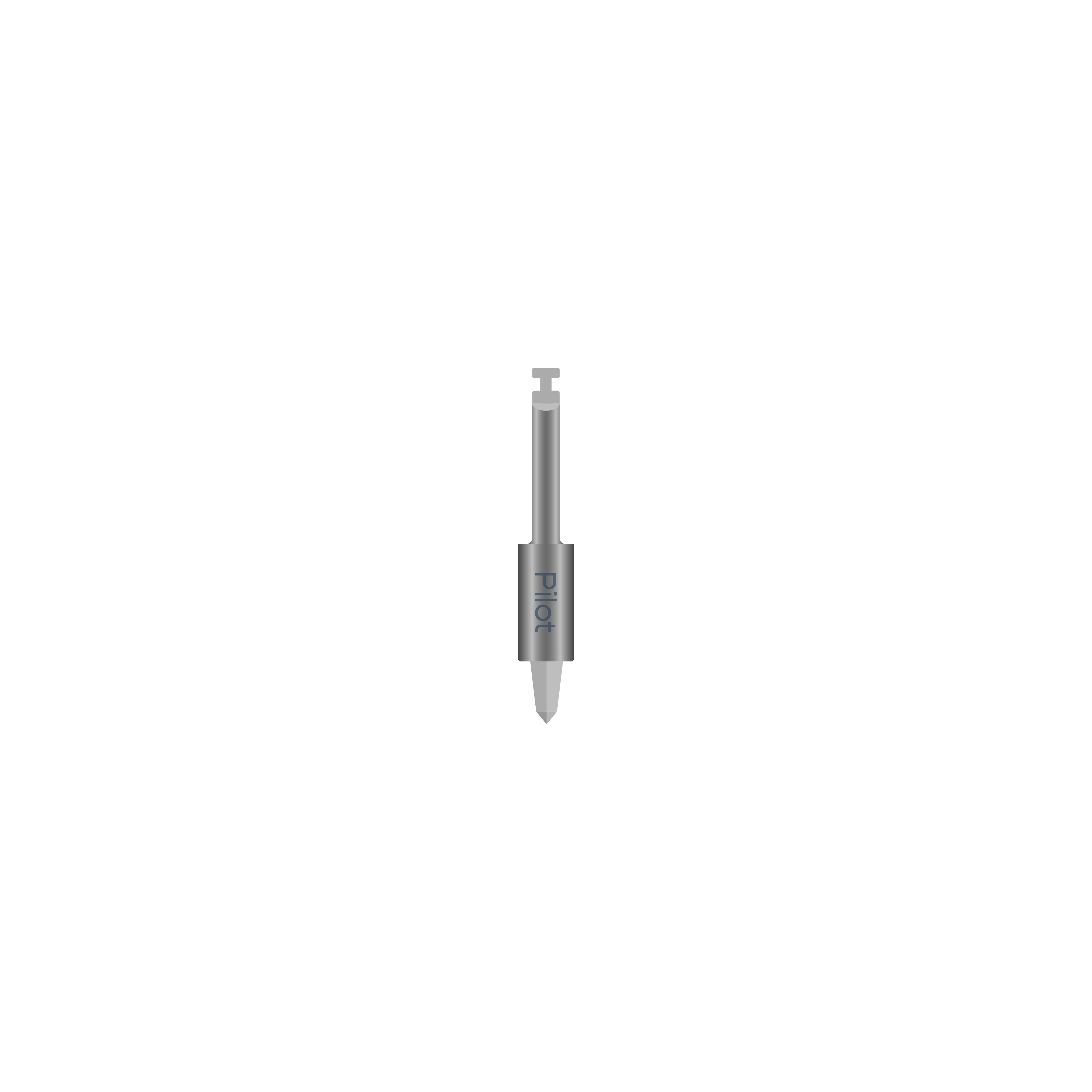

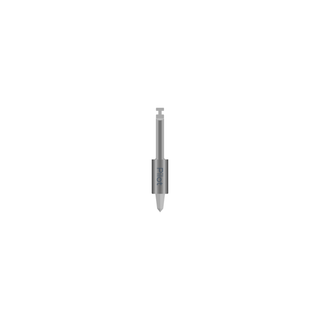

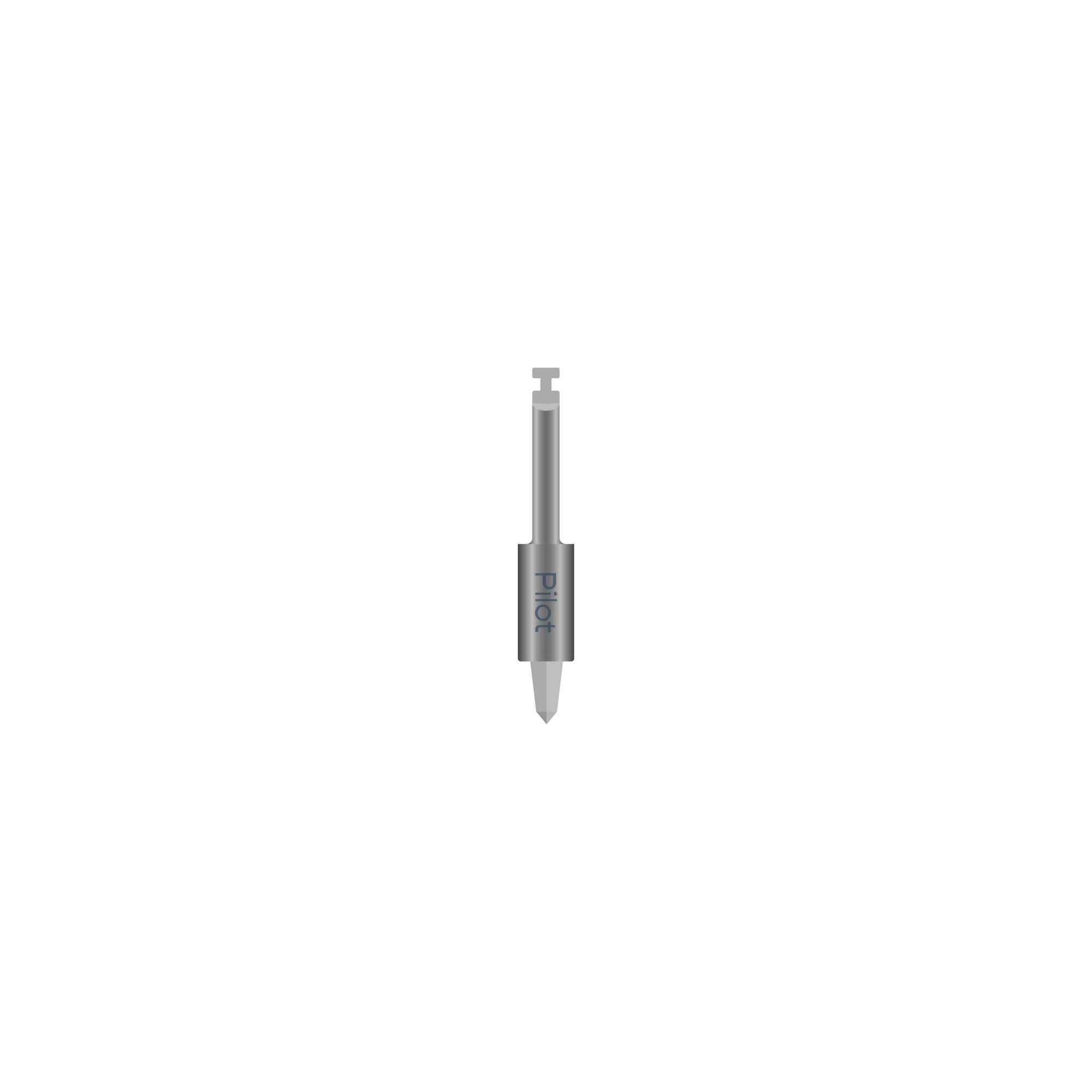

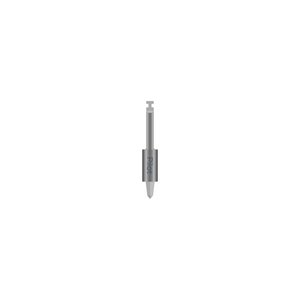

• 5.0mm Pilot Drill

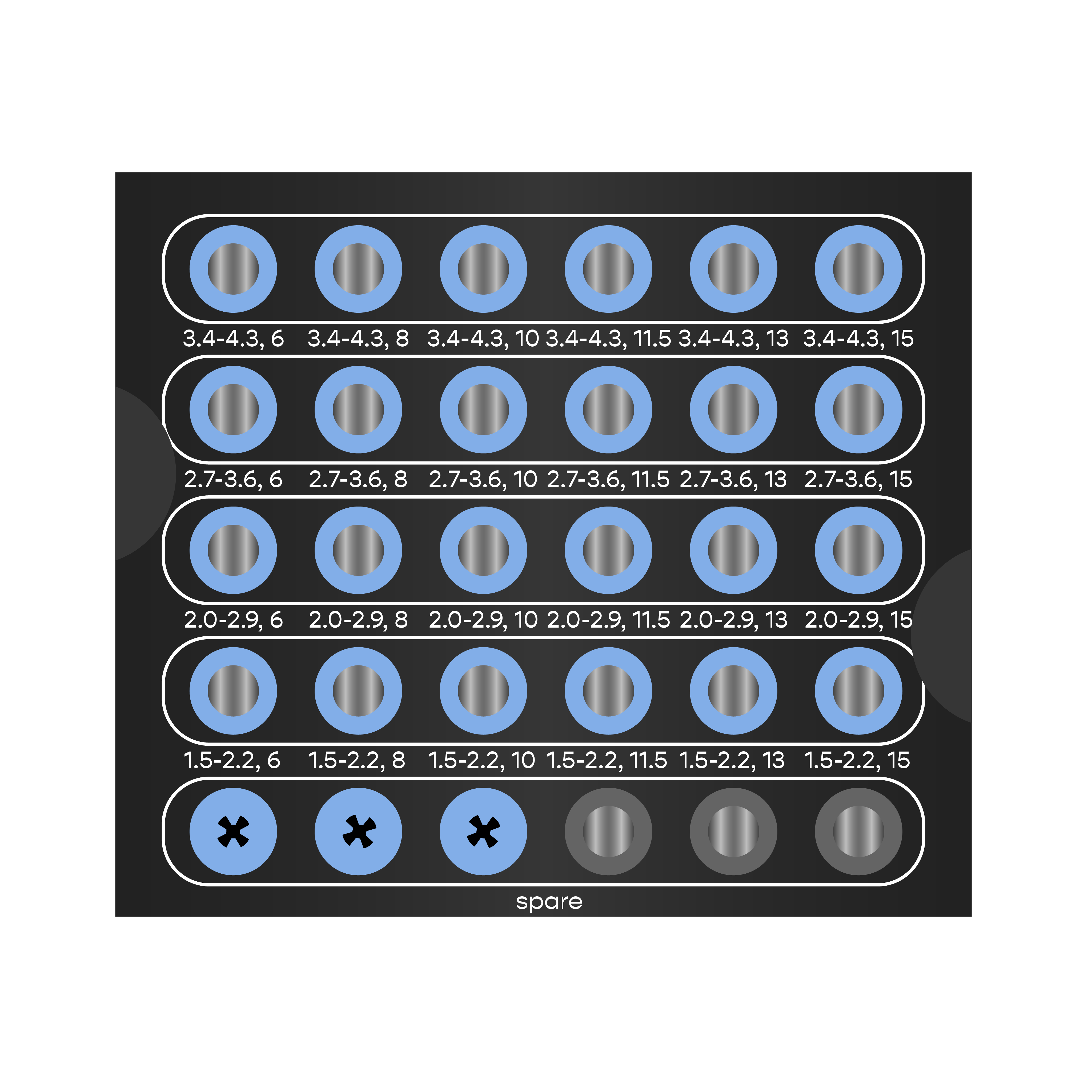

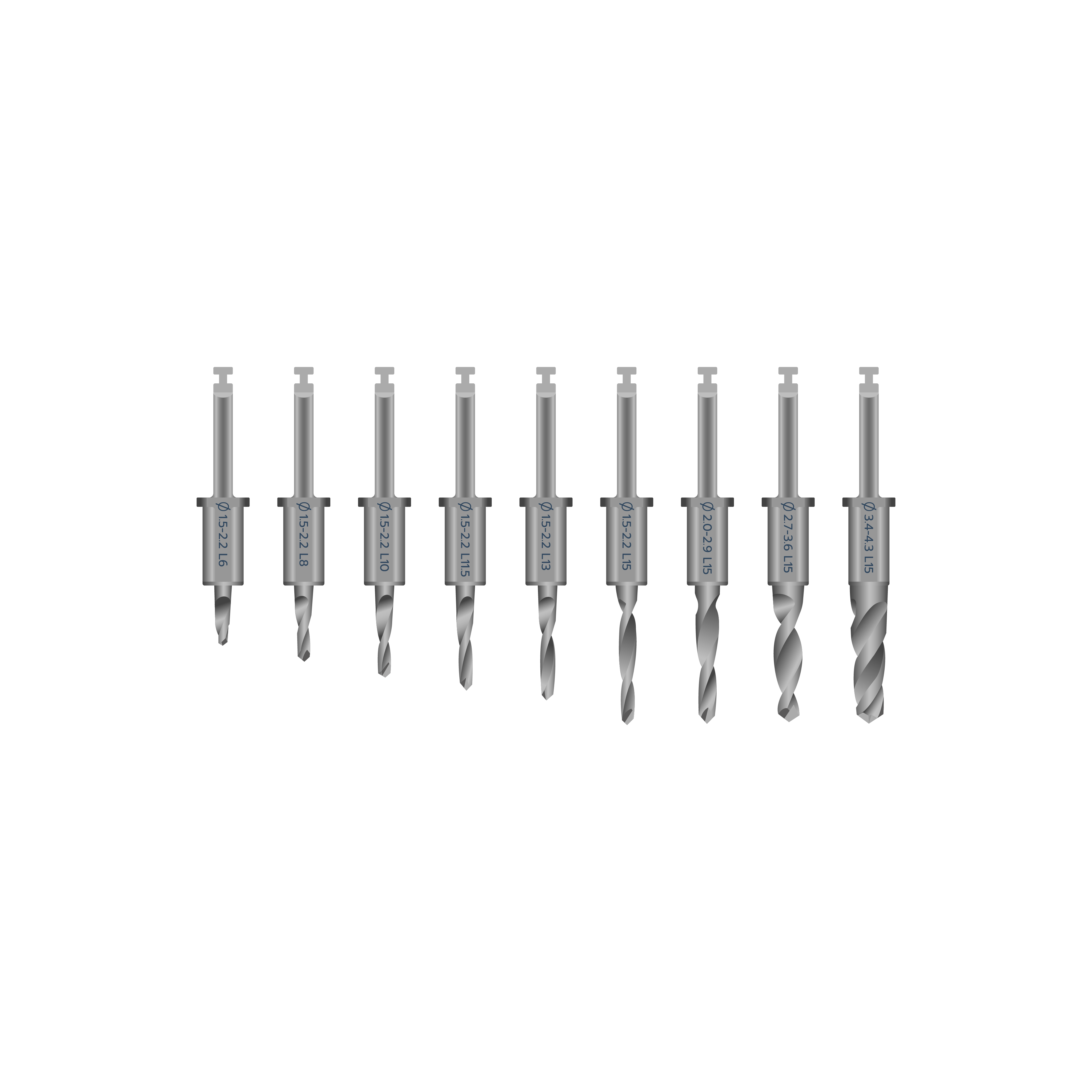

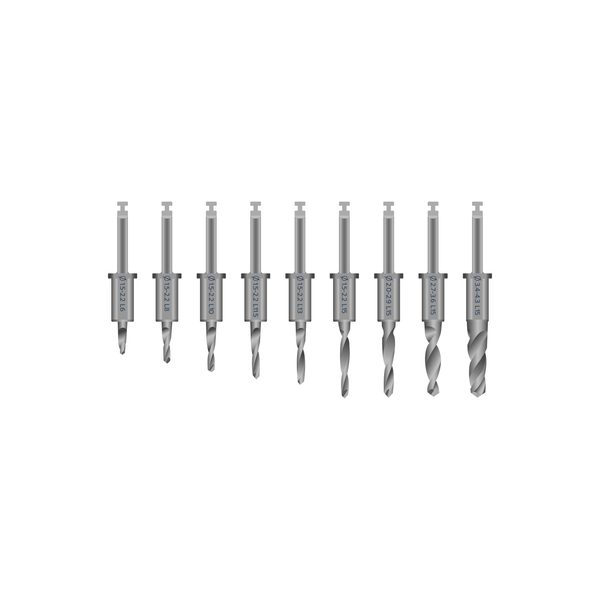

• 2° Tapered drills (25)

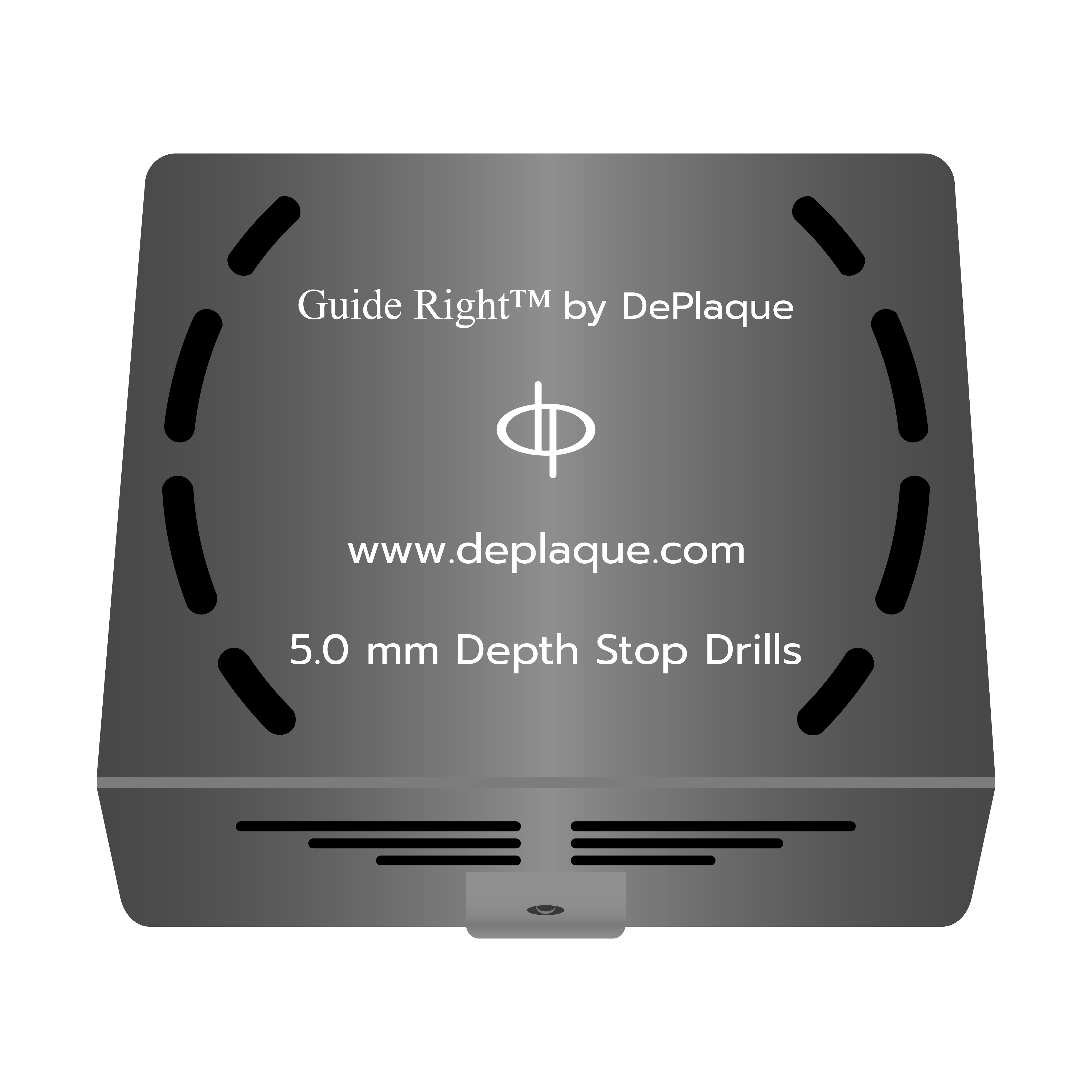

• Stainless Steel Container

To fabricate Diagnostic Guide pair with:

• C20216 - Diagnostic Guide Post - 2.0mm
• 2200 - Thin-Walled Diagnostic Guide Sleeve - With Cleat - 2.0mm
• C2104 - Straight Guide Post - 3.0mm x 30mm
• C2305- Guide Sleeve - With Cleat - 3.0mm

To fabricate Surgical Guide pair with:

• C20200 - 2-Piece Straight Guide Post - No Offset
• 2-Piece Guide Post Lower Part Offsets: 0.5mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, or 4.0mm
• C20149 - 2-Piece Guide Post Upper Removable Part (URP) - 4.9mm OD
• 9050BSB - Guide Sleeve - Without Cleat - With Lip - 5.0mm x 5.56mm
• 9027 - Guide Sleeve - Without Cleat - With Lip - 5.0mm x 5.6mm
• 9104 - Guide Sleeve - With Cleat - 5.01mm x 5.06mm

Users of DePlaque Inc. drills have the responsibility to determine whether the diameter and length of these products are suitable for the particular surgical procedure.
