2-Piece Straight Guide Post - No Offset

2-Piece Straight Guide Post - No Offset

PARTS & DIMENSIONS:

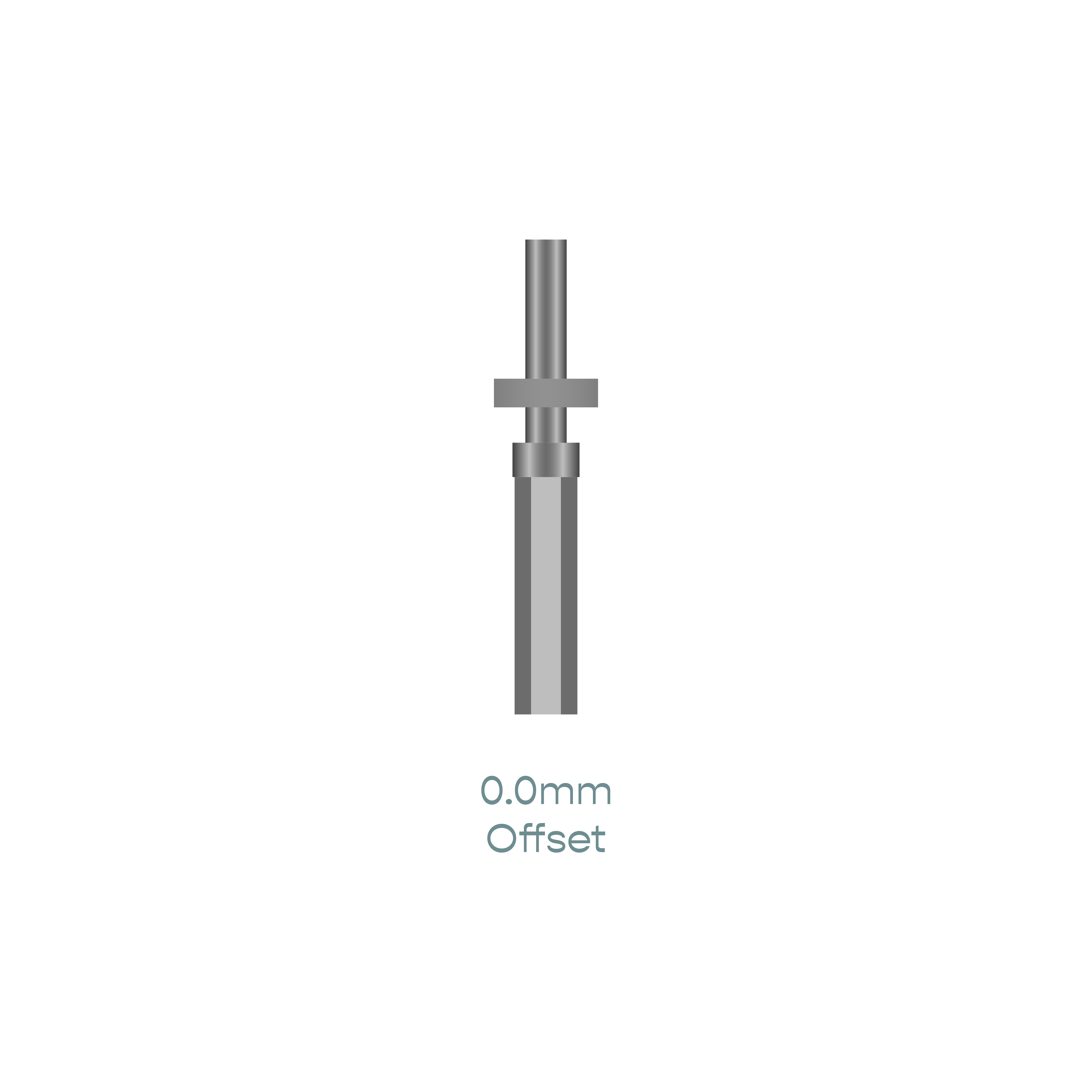

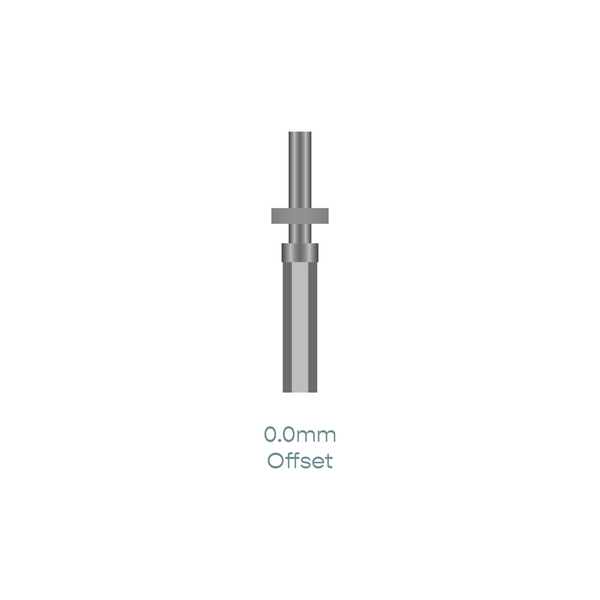

• Guide Post Total Length: 15mm
• Lower Shaft: OD - 3/32in X 10.0mm L - octagonal - 8 flat sides
• Platform: 5.0mm sq. X 1.0mm thick - 4 flat sides - represents the mesial, distal, buccal, & lingual surfaces of the tooth to assist in making linear corrections to the surgical guide
• Upper Shaft: OD - 1/16in X L 5.0mm - extends up from platform:
• Offset: from lower shaft - 0.0 mm
• Bending Point: 1.0mm between platform & lower shaft to accommodate bend for angle corrections

UTILIZATION:

• Upper Removable Parts (URP) are positioned over upper shaft to orient the Guide Sleeve while the light cured resin is being applied to fabricate the surgical guide

PROTOCOL: HOW IT IS USED:

• Site evaluation with cone beam to assess & determine linear & angle corrections are necessary to accurately place implants.

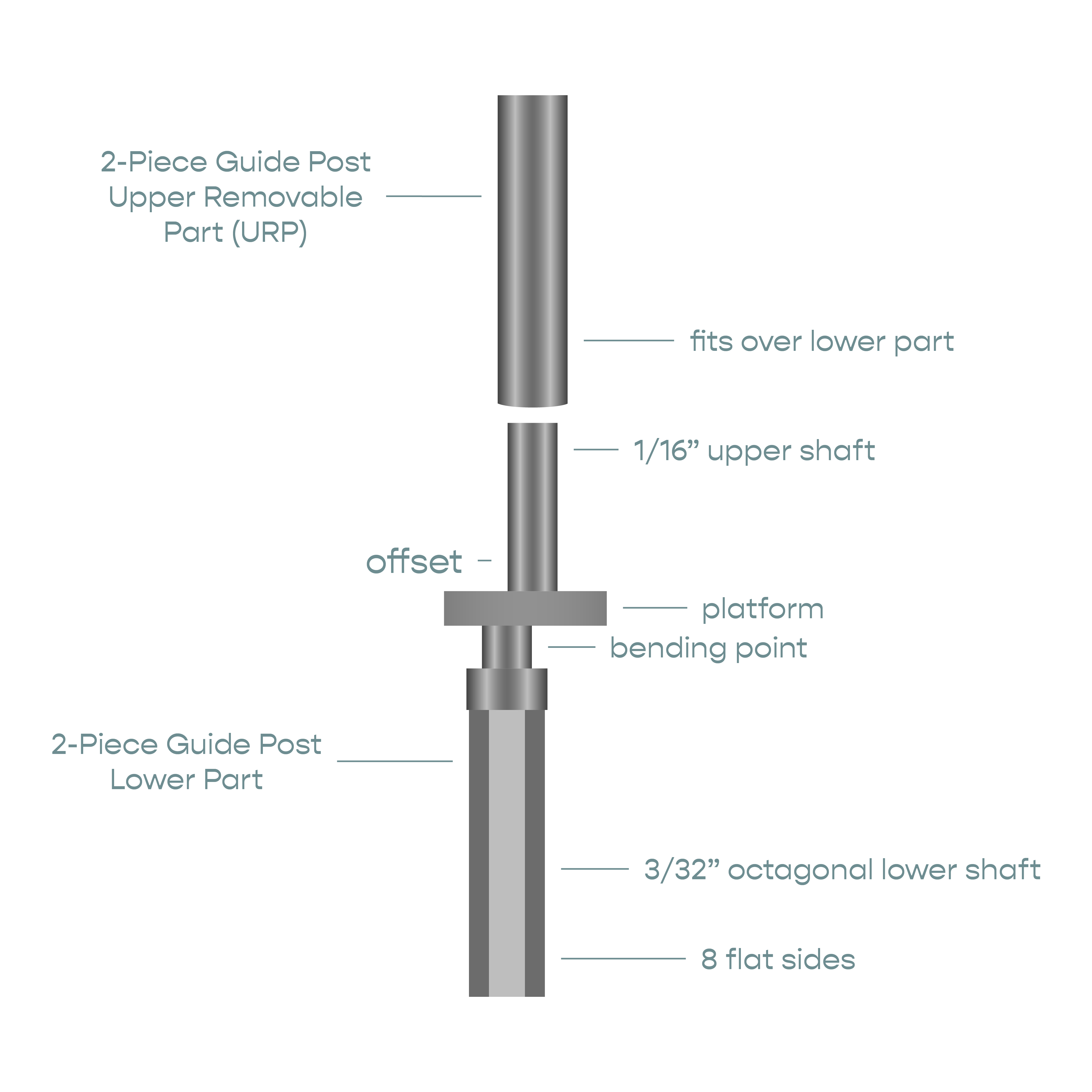

• Various size Upper Removable Parts (URP) can be placed on the upper shaft of the 2- Piece Lower Guide Post to orient and align the appropriate size Guide Sleeve while the Triad® gel or other light cured resin is being applied to fabricate the surgical guide. (SEE 2-Piece Guide Post Parts Diagram)
• Presentations featuring these products:

“NEW 2-Piece Guide Post with Steps to Making a Surgical Guide featuring Invivo5 & 2019 Bullet Stylus JUNE 2019”

“Smiles for Vets”

ADVANTAGES:

• Use of the 2-Piece Guide Post allows easy removal of the surgical guide when the Upper Removable Part of the guide post is removed, leaving the 1/16” diameter part of the lower post. The URP must be removed before the surgical guide is removed from the cast.
• All diameter guide sleeves can be used by changing the coordinating diameter of the Upper Removable Part of the 2-Piece Guide Post.
• Upper Removable Parts (URP) available sizes: in mm OD: 3, 2.7 3.0, 3.9, 4.15, 4.16, 4.5, 4.8, 4.9, 5.15, 5.26, 5.5.  Paired Recommendation slightly smaller, OD - 0.03 in., than the guide sleeve's ID).
• 2-Piece Guide Post Lower Parts available in mm offset dimensions: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0

CASE SPECIFIC QUESTIONS: TeamViewer@swmeit4@gmail.com
