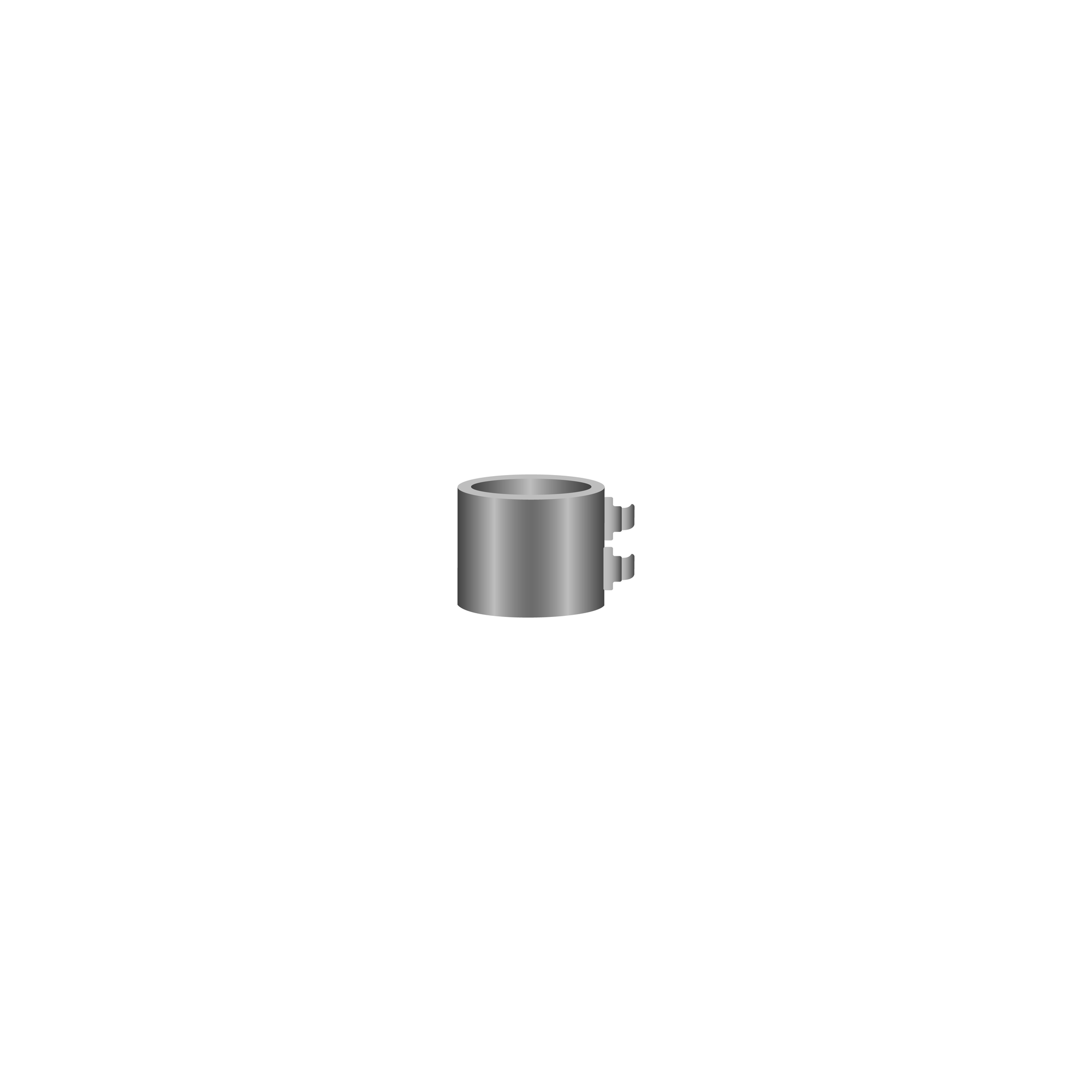

The Wide Diameter Guide Sleeve With Cleat is the widest guide sleeve and is to be used with Serial Guide Sleeve Inserts ranging from 2.6mm to 4.2mm. Measure the drill diameter before ordering inserts. Inserts are press fit and require an Insert Removal Tool (IRT) or 5.3mm Fabrication Insert (FABIN).

Dimensions:

• 5.3mm ID x 6.4mm OD x 5mm H / with cleat

Pair with:

• 2300 - Angle-Cut Guide Sleeve - With Cleat - 3.0mm
• 2505 - 5.3mm Fabrication Insert (FABIN)
• 2515 - Serial Guide Sleeve Insert - 2.6mm for 5.3mm Guide Sleeve
• 2525 - Serial Guide Sleeve Insert - 3.0mm for 5.3mm Guide Sleeve
• 2535 - Serial Guide Sleeve Insert - 4.0mm for 5.3mm Guide Sleeve
• 2540 - Serial Guide Sleeve Insert - 4.2mm for 5.3mm Guide Sleeve
• 4040 - Insert Removal Tool (IRT)
• C2104 - Straight Guide Post - 3.0mm x 30mm
