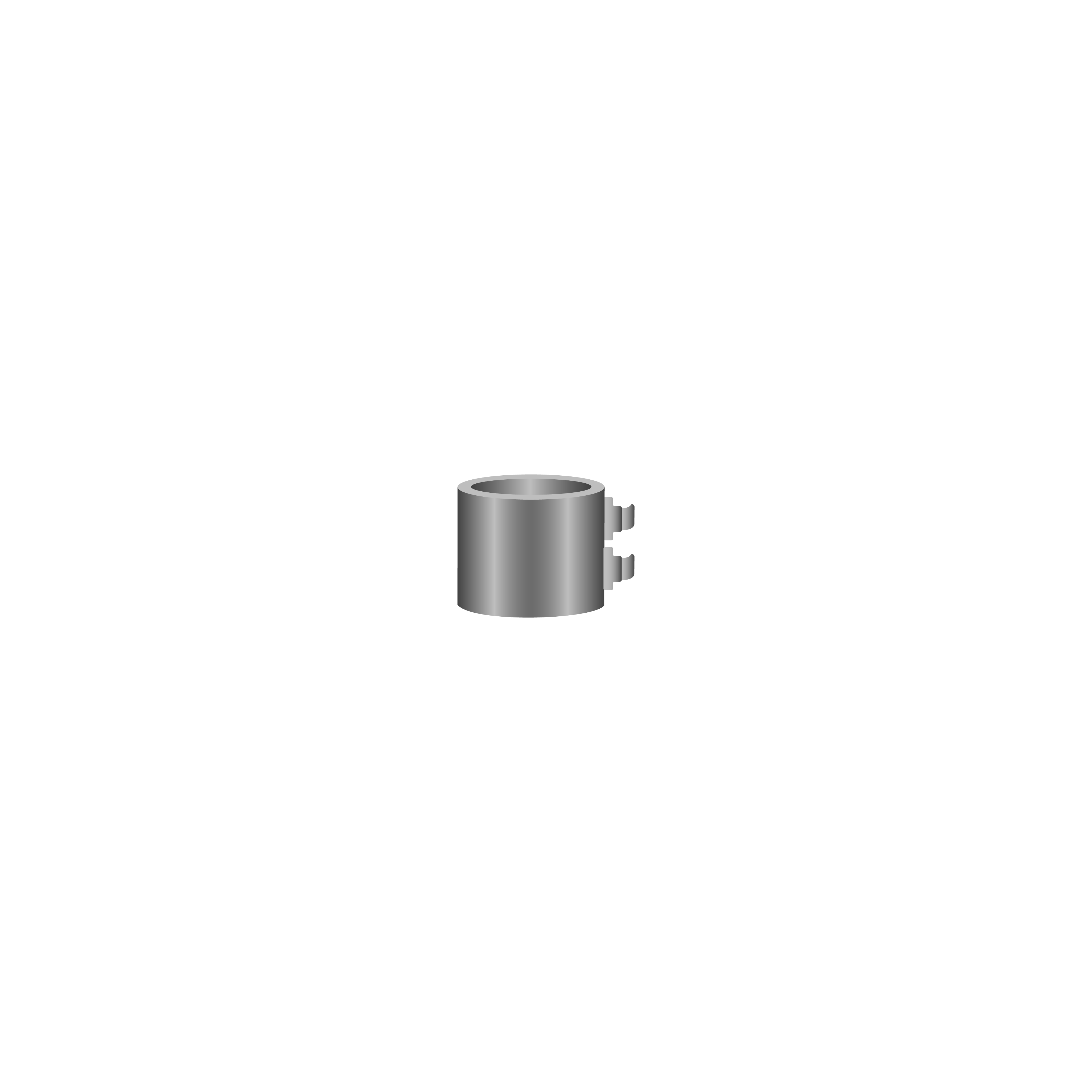

The Serial Guide Sleeve is used with Serial Guide Sleeve Inserts ranging from 2.0mm to 4.0mm. Measure the drill diameter before ordering inserts. Inserts are press fit and require 4040- Insert Removal Tool or 2405- 4.5 Fabrication Insert (FABIN) - Insert for 4.5mm Guide Sleeve
4.5mm ID x 6 OD x 5mm H
Optional Paired Components:
- 2408 - SGSI 1.0 for 4.5
- 2409 - SGSI 1.7 for 4.5
- 2410 - SGSI 2.0 for 4.5
- 2415 - SGSI 2.25 for 4.5
- 2420 - SGSI 2.5 for 4.5
- 2425 - SGSI 2.75 for 4.5
- 2430 - SGSI 3.0 for 4.5
- 2435 - SGSI 3.25 for 4.5
- 2440 - SGSI 3.5 for 4.5
- 2445 - SGSI 3.75 for 4.5
- 2450 - SGSI 4.0 for 4.5
- 2300 - PGS 3.0mm - Posterior Angle-Cut Sleeve
- 4040 - Insert Removal Tool
- 2405 - 4.5 FABIN
