Advantages, Protocol, and Purpose: 2-Piece Guide Post Reference Sheets

Diameter is selected by the ID of the Guide Sleeve and implant to be placed, or the drills used.

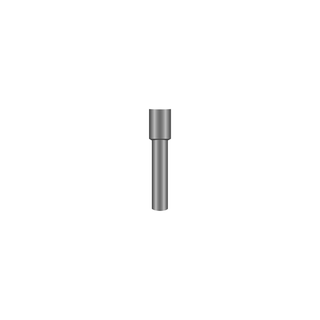

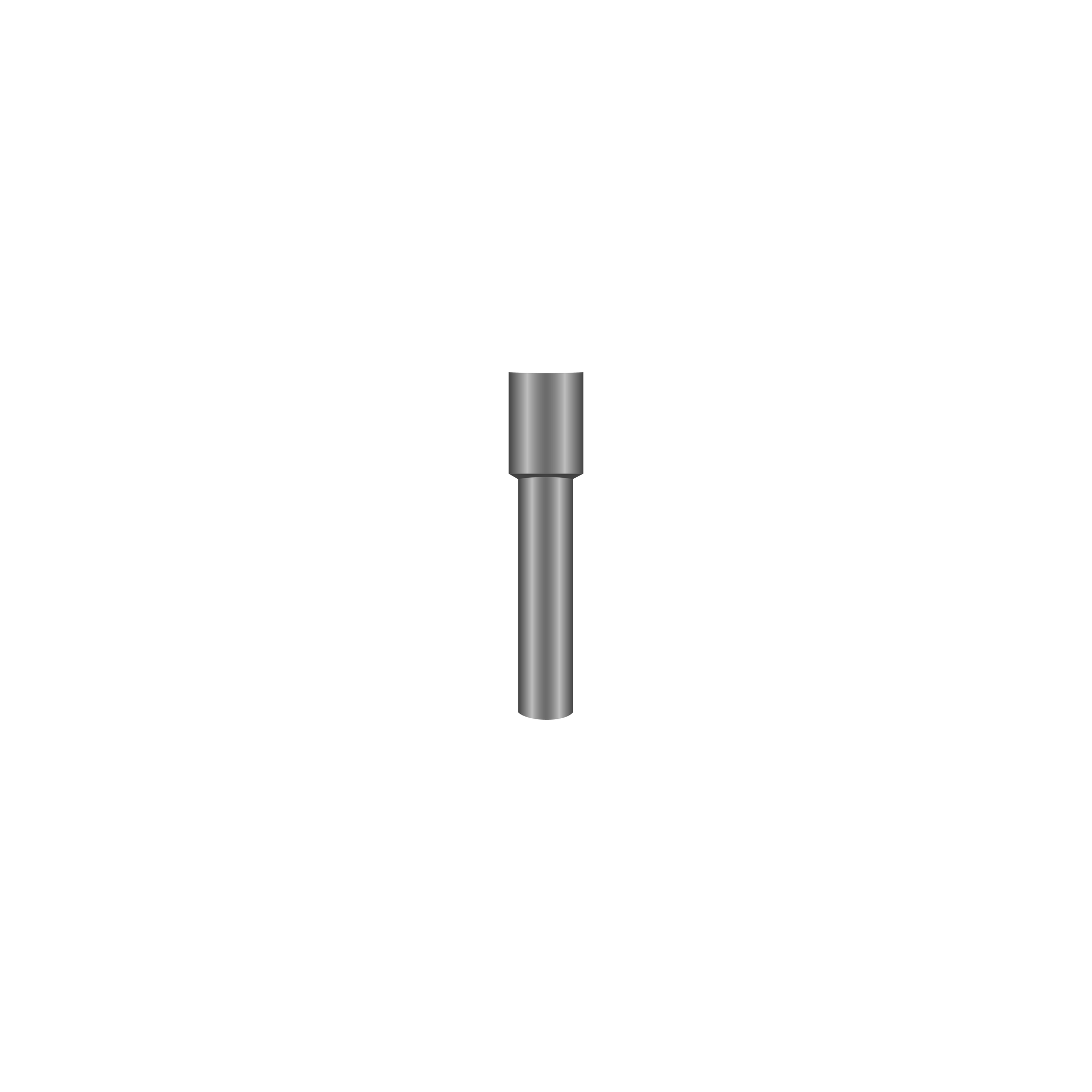

Dimensions:

• 2.0mm OD
• Guide Post Total Length: 15mm
• Cap: 2.5mm OD x 4.5mm L

Pair with:

• C20216 - Diagnostic Guide Post - 2.0mm
• 2200 - Thin-Walled Diagnostic Guide Sleeve - With Cleat - 2.0mm
• 2205 - Guide Sleeve - Without Cleat - 2.3mm

• 9020 - Guide Sleeve - With Cleat - 2.3mm

Relevant Presentations:

- GREATER ACCURACY WHEN USING SMALLER DIAMETER DIAGNOSTIC GUIDE SLEEVES
- RIDGE AUGMENTATION AT TIME OF PLACEMENT
- STRAUMANN 2.9mm GUIDED SURGERY
- USE OF 2-PIECE GUIDE POST WITH ANGLE & LINEAR CORRECTIONS
