2-Piece Guide Post - 5.0 mm Offset Lower Part

$20.00 Regular price
Unit price
SKU: C20250
Shipping calculated at checkout.

This product is available by special request only. Once your order is placed, we will contact you to confirm availability.

Advantages, Protocol, and Purpose: 2-Piece Guide Post Reference Sheets

Offsets are designed for linear corrections that reposition the implant.

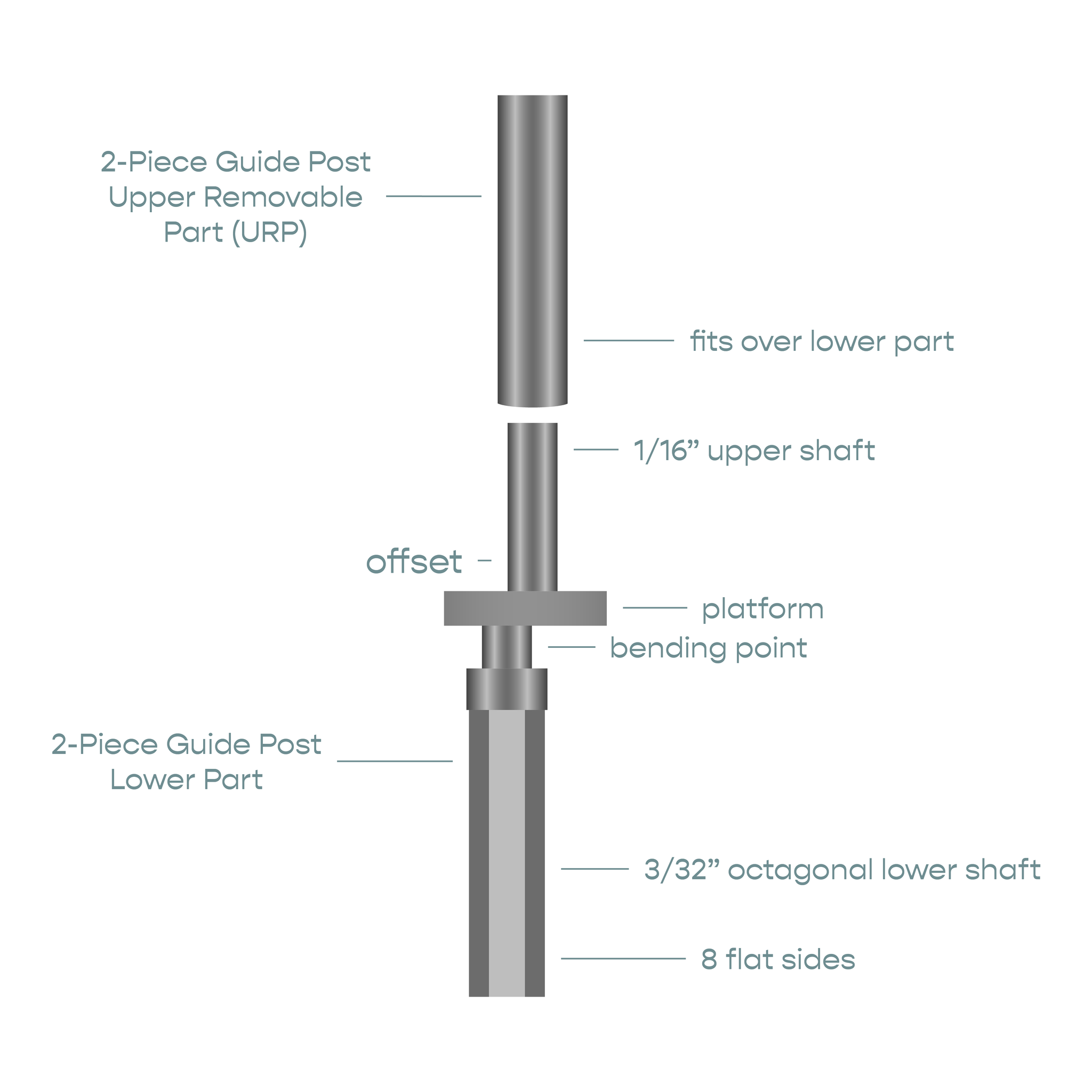

  • Lower Shaft: 3/32 in x OD 10 mm L
    • 8 flat sides, octagonal
  • Platform: 5.0 mm sq. x 1.0 mm thick
    • 4 flat sides, rectangular
    • represents the mesial, distal, buccal, and lingual surfaces of the tooth to assist in making linear corrections to the surgical guide
  • Upper Shaft: 1/16 in x OD 5.0 mm L
    • extends up from platform

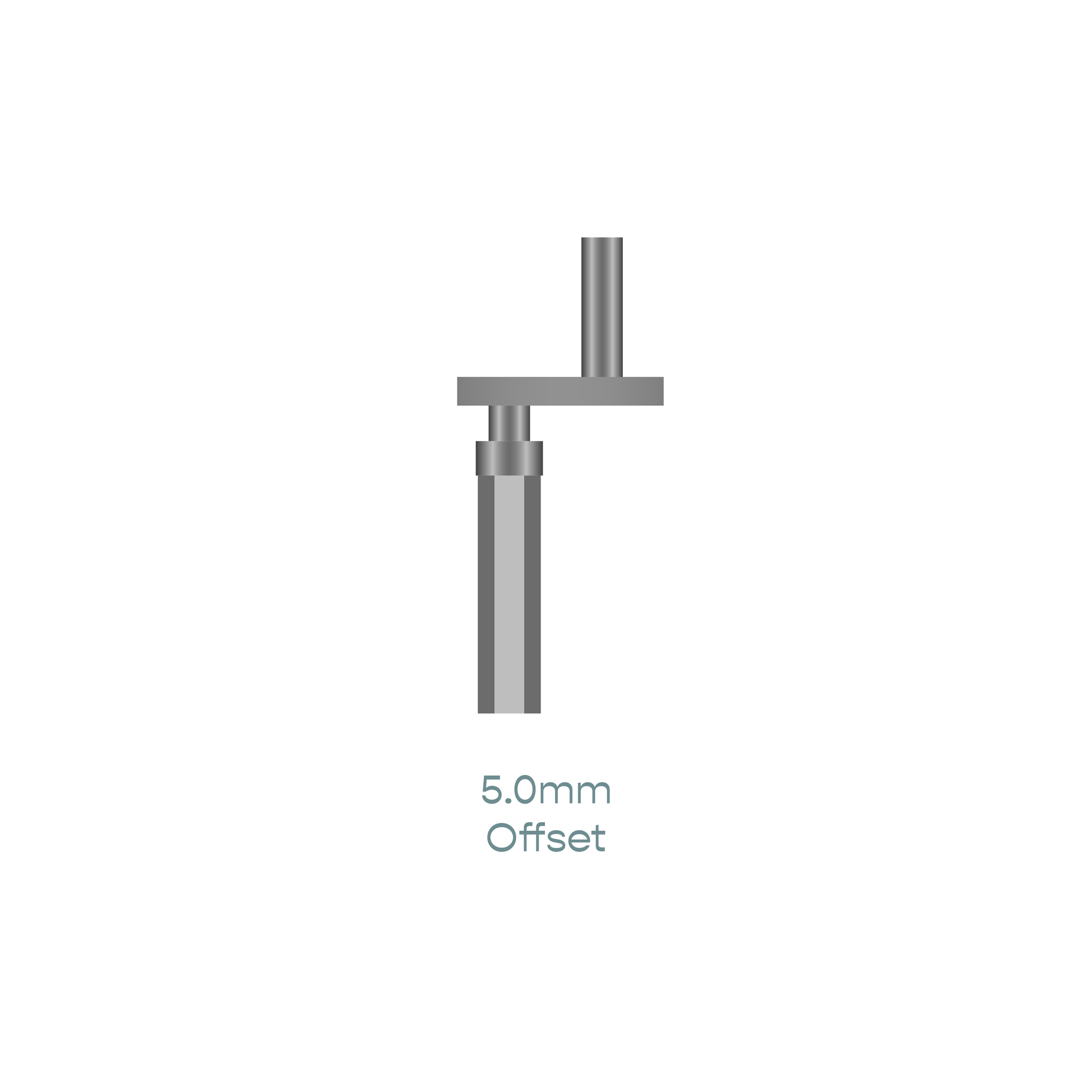

  • Offset from Lower Shaft: 5.0 mm
  • Bending Point: 1.0 mm
    • between platform and lower shaft to accommodate bend for angle corrections
  • Guide Post Total Length: 17 mm
