This product is available by special request only. Once your order is placed, we will contact you to confirm availability.
Advantages, Protocol, and Purpose: 2-Piece Guide Post Reference Sheets
Offsets are designed for linear corrections that reposition the implant.

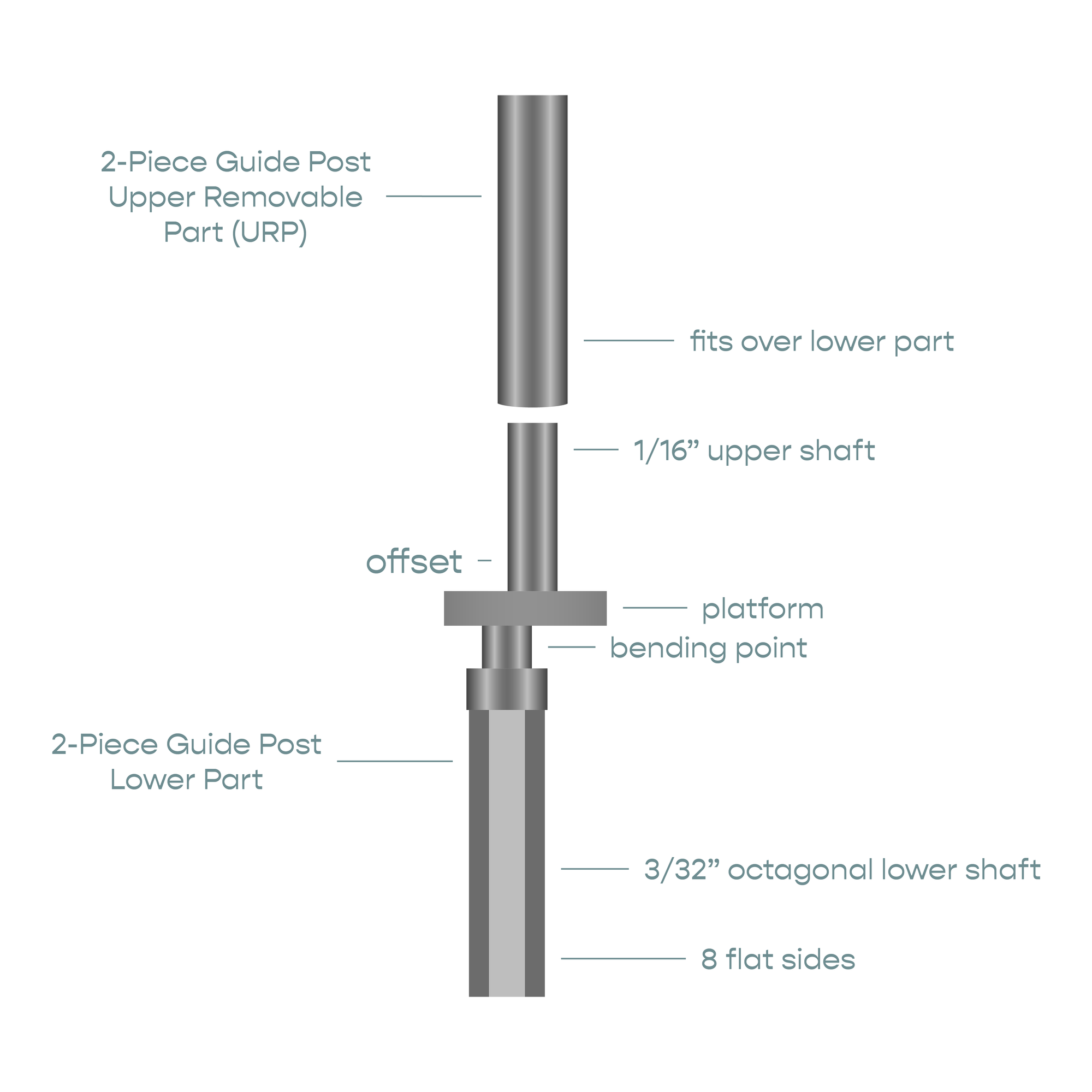

Dimensions:
- Lower Shaft: 3/32 in x OD 10 mm L
- Platform: 5.0 mm sq. x 1.0 mm thick
- 4 flat sides, rectangular
- represents the mesial, distal, buccal, and lingual surfaces of the tooth to assist in making linear corrections to the surgical guide
- Upper Shaft: 1/16 in x OD 5.0 mm L

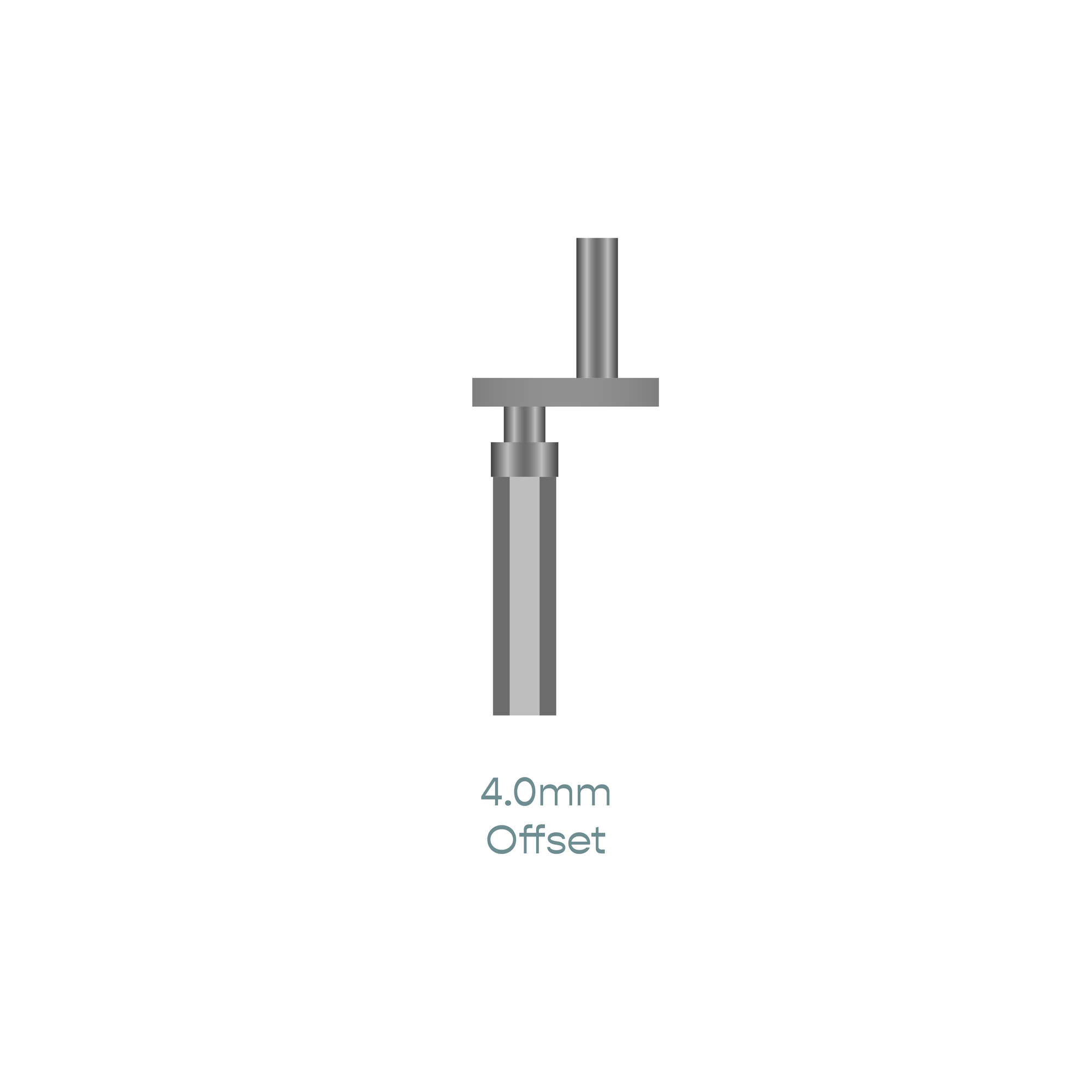

- Offset from Lower Shaft: 4.0 mm
- Bending Point: 1.0 mm
- between platform and lower shaft to accommodate bend for angle corrections
- Guide Post Total Length: 17 mm
