Advantages, Protocol, and Purpose: 2-Piece Guide Post Reference Sheets

Offsets are designed for linear corrections that reposition the implant.

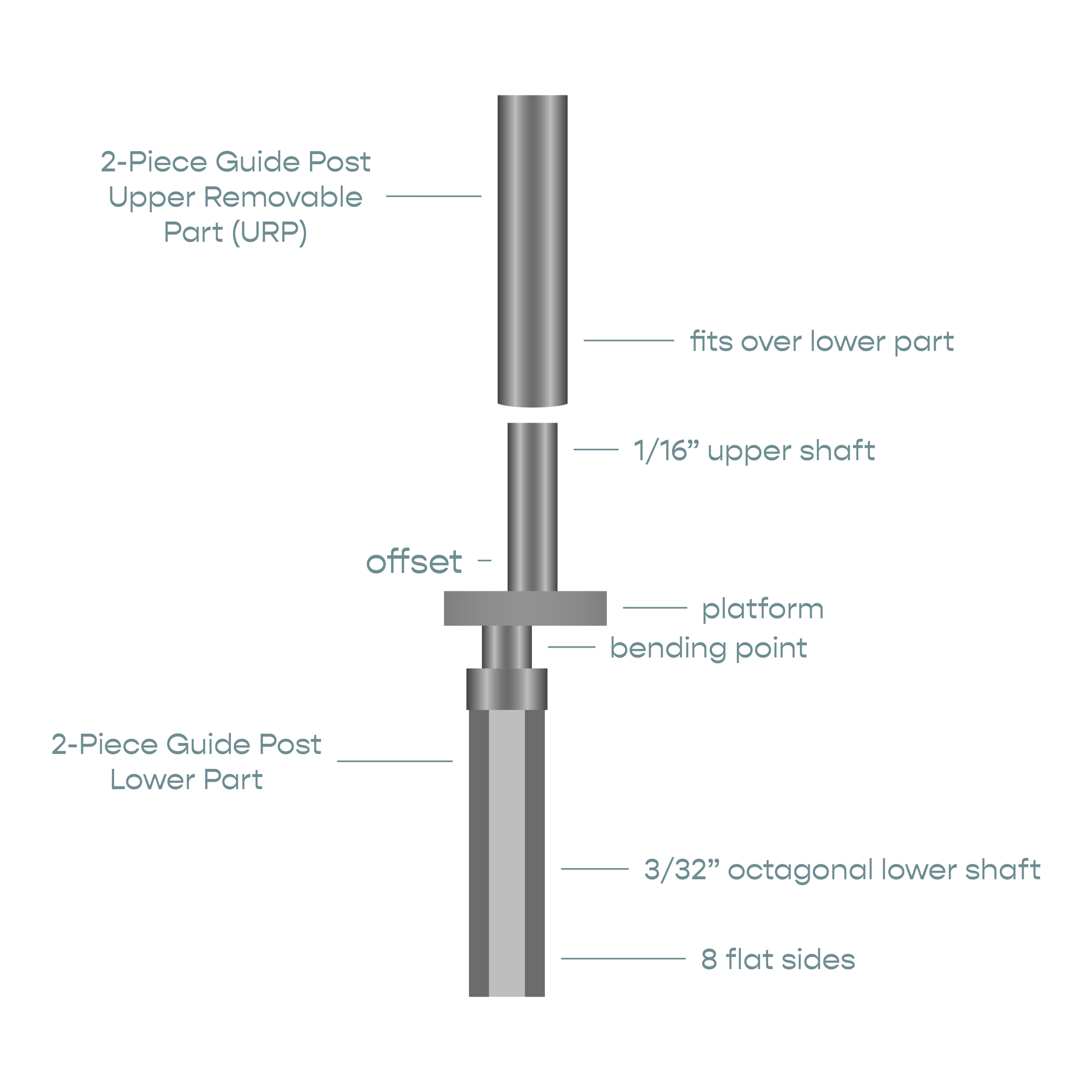

Dimensions:

• Lower Shaft: 3/32 in x OD 10 mm L
• 8 flat sides, octagonal
• Platform: 5.0 mm sq. x 1.0 mm thick
• 4 flat sides, rectangular
• represents the mesial, distal, buccal, and lingual surfaces of the tooth to assist in making linear corrections to the surgical guide
• Upper Shaft: 1/16 in x OD 5.0 mm L
• extends up from platform

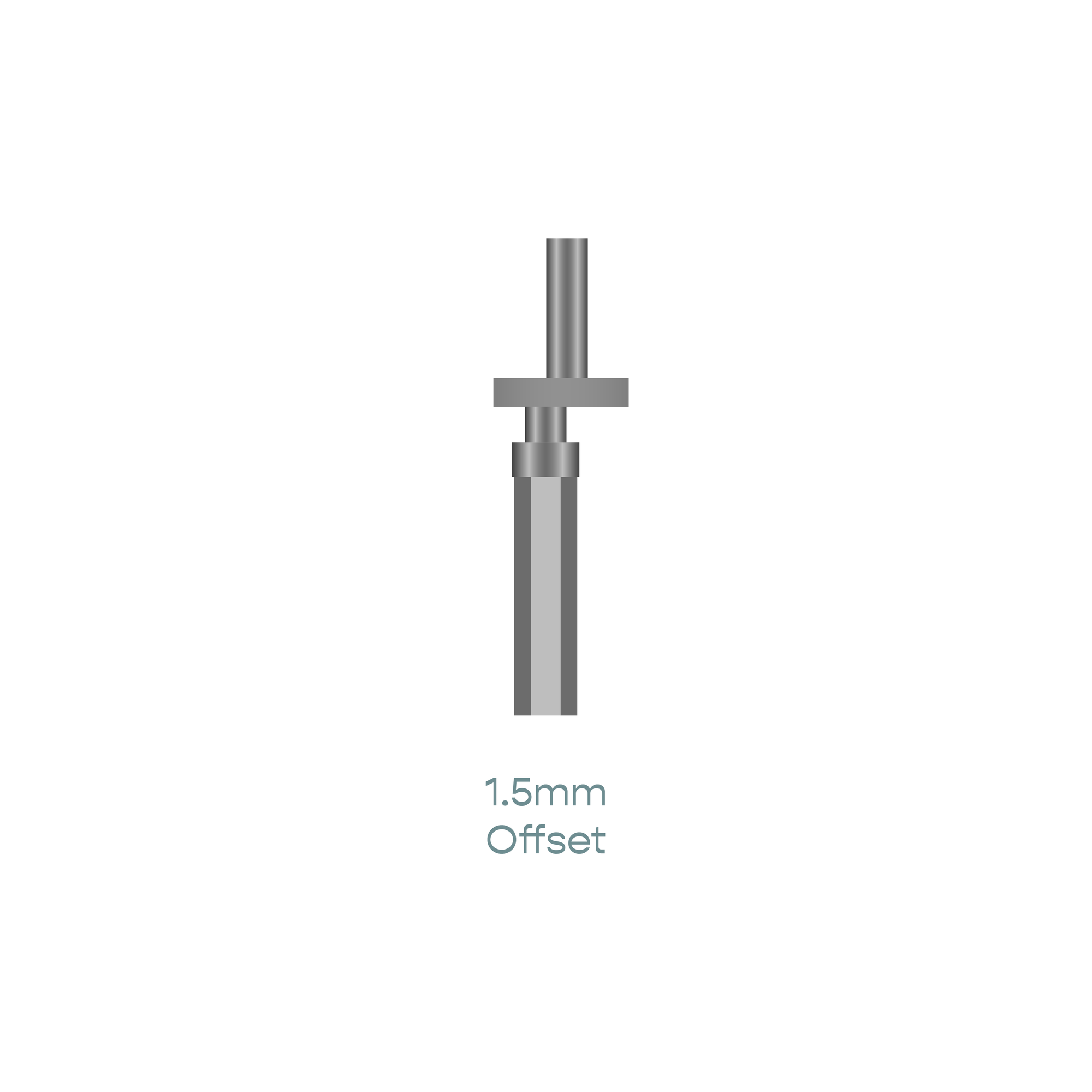

• Offset from Lower Shaft: 1.5 mm
• Bending Point: 1.0 mm
• between platform and lower shaft to accommodate bend for angle corrections
• Guide Post Total Length: 17 mm
