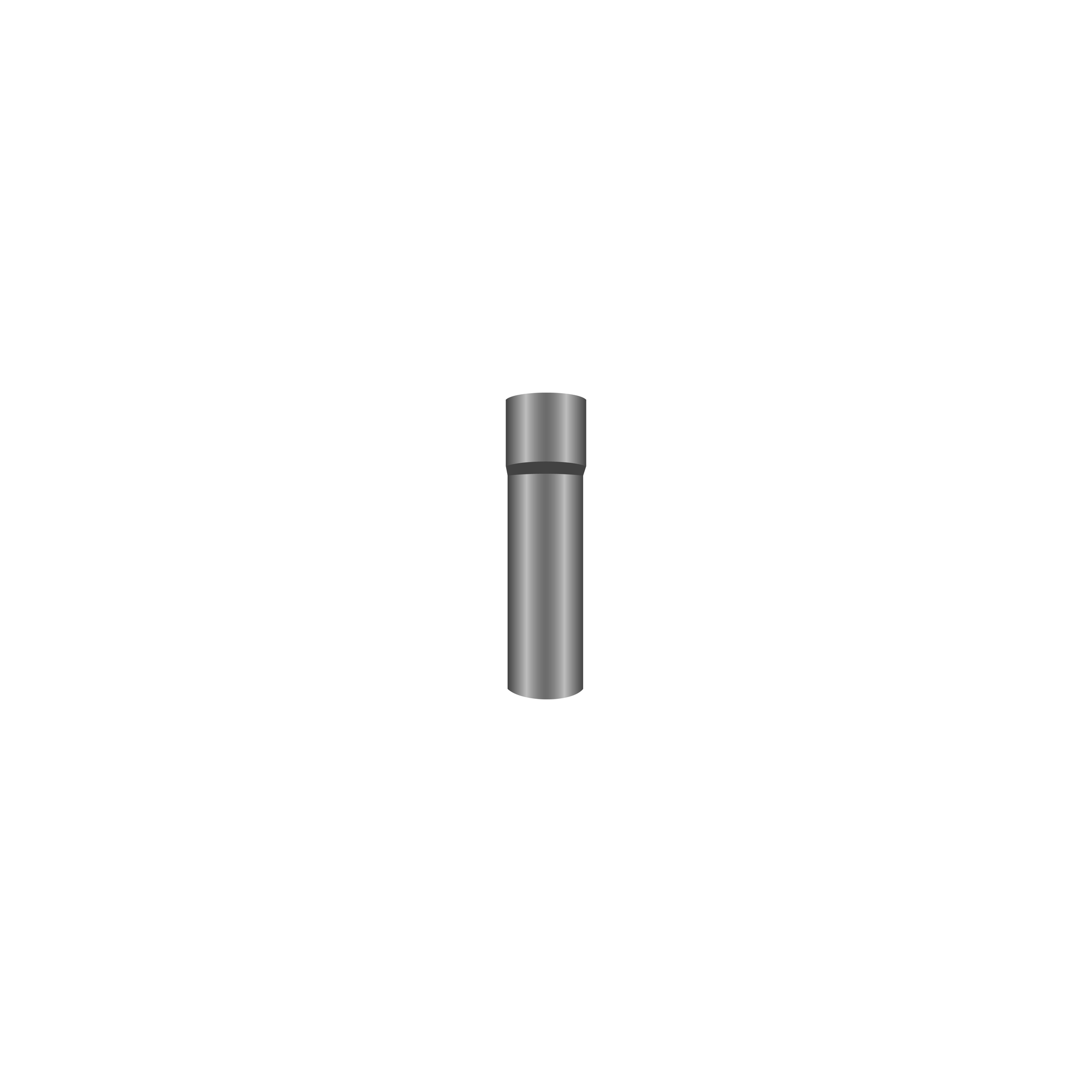

The 2.0 mm Press Fit Guide Sleeve Insert, in conjunction with various drill sizes, is used with many implant systems. It is designed to press fit into the Guide Sleeve With Cleat and is removable with the Insert Removal Tool.
Dimensions:
Instructions for use:
- The surgeon (or assistant) will need to use the Insert Removal Tool to release the Insert before placing the next larger size in a multi drill sequence.
- Inserts release easier when fabricated in an acrylic guide than if gripped between your fingers.
-
The use of the graduated size Inserts for increasing drill sizes produces more accurate results. Inserts are available in 1.6 mm - 4.6 mm inside diameter increments and are compatible with the various drill sizes used with many implant systems.
- Guide Sleeve Inserts are pressed down into a Sleeve to obtain a press fit to prevent Inserts from spinning while drilling.
